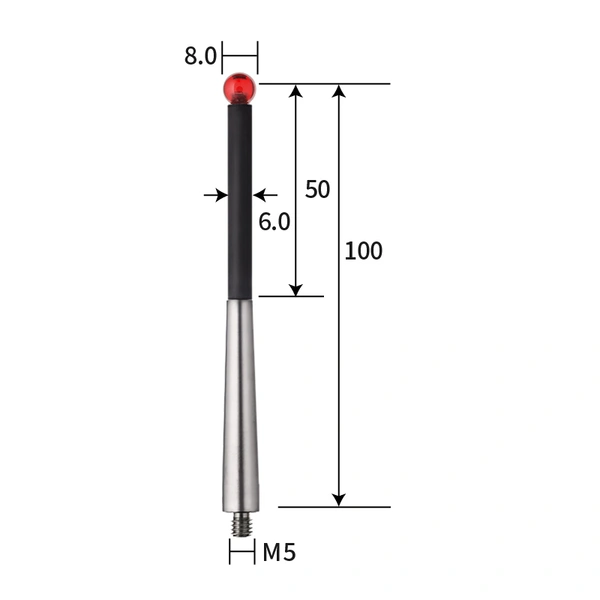

M5 stylus, ruby ball, carbon fiber stem

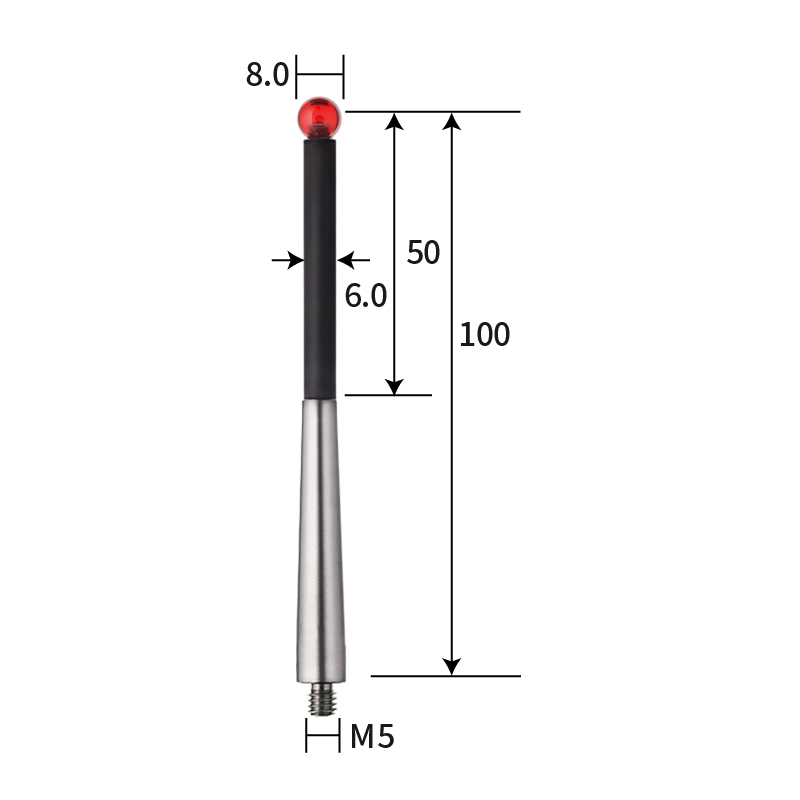

TH5261-M5-100F-08R M5 Ø8 mm ruby ball, carbon fiber rod, length 100 mm

The straight stylus is suitable for detecting simple features that can directly contact the measured surface without obstruction. The carbon fiber measuring rod is very lightweight and is very suitable for applications with strict weight requirements. Ruby is recognized as the industry standard material for measuring needles and is currently one of the hardest materials available, suitable for most applications. Due to the presence of adhesive wear, it is not recommended to use a ruby probe when scanning aluminum workpieces.

Description

Measuring ball diameter (mm)8
Center measuring probeN
Effective working length (mm)50
Trochal discSS
Overal length (mm)100
Stem diameter (mm)6
Stem materialcarbon fiber
ThreadM5
Stylus end materialRuby
