M5 stylus, ruby ball, tungsten carbide stem

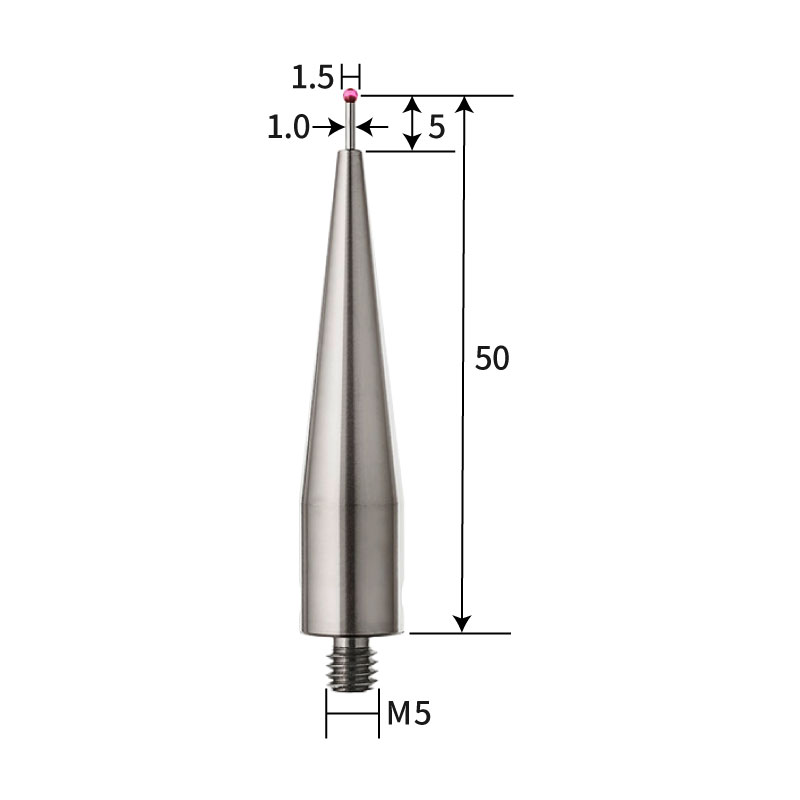

TH5229-M5-50T-015R M5 Ø1.5 mm ruby ball, tungsten carbide rod, length 50 mm

The straight stylus is suitable for detecting simple features that can directly contact the measured surface without obstruction. Tungsten carbide measuring rods have excellent rigidity, especially suitable for measuring needles with smaller ball and rod diameters. Ruby is recognized as the industry standard material for measuring needles and is currently one of the hardest materials available, suitable for most applications. Due to the presence of adhesive wear, it is not recommended to use a ruby probe when scanning aluminum workpieces.

INQUIRY

Description

Measuring ball diameter (mm)

1.5

Center measuring probeN
Effective working length (mm)5
Trochal discSS
Overal length (mm)50
Stem diameter (mm)1
Stem materialTungsten Carbide
ThreadM5
Stylus end materialRuby
