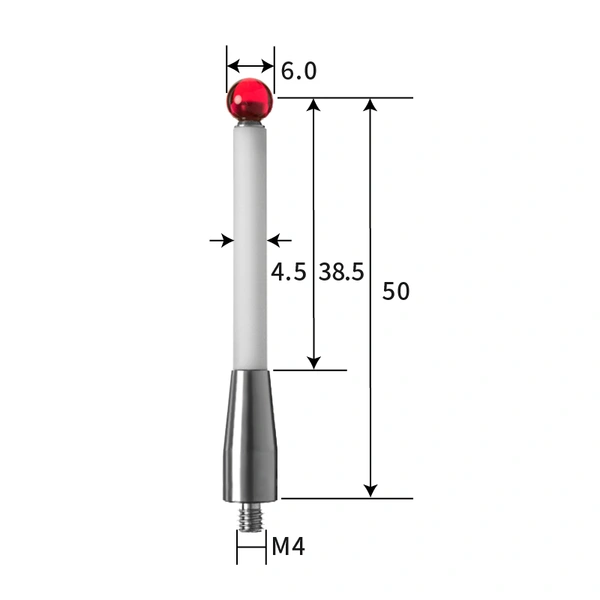

M4 stylus, ruby ball,ceramic stem

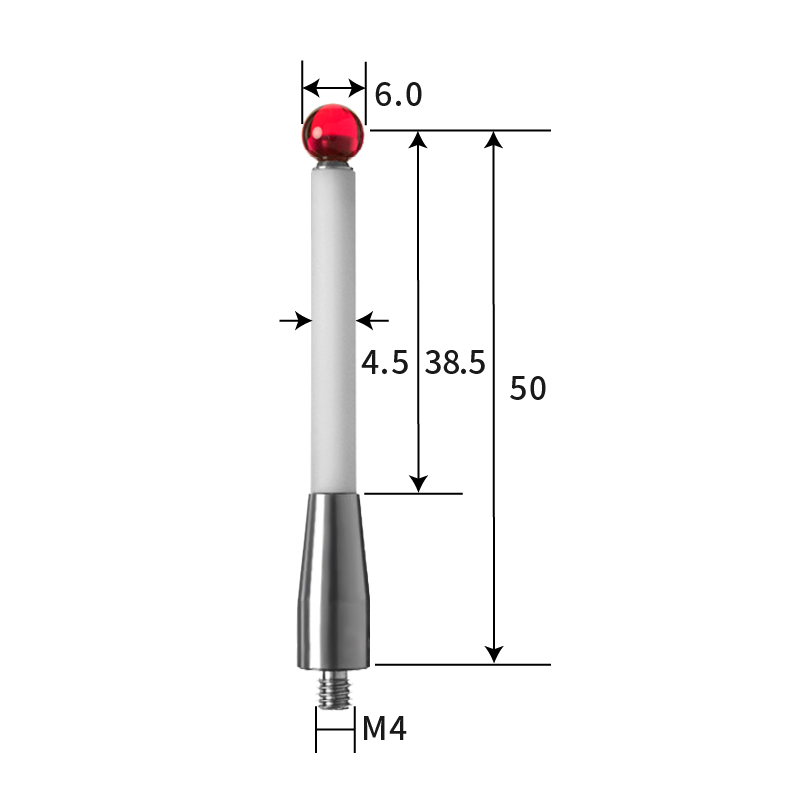

TH3709-M4-50C-06R M4 Ø6 mm ruby ball,ceramic rod, length 50 mm

The straight stylus is suitable for detecting simple features that can directly contact the measured surface without obstruction. Ceramic measuring rods are lightweight but highly rigid, and have excellent collision protection characteristics. Ruby is recognized as the industry standard material for measuring needles and is currently one of the hardest materials available, suitable for most applications. Due to the presence of adhesive wear, it is not recommended to use a ruby probe when scanning aluminum workpieces.

Description

Measuring ball diameter (mm)6
Center measuring probeN
Effective working length (mm)38.5
Trochal discSS
Overal length (mm)50
Stem diameter (mm)4.5
Stem materialceramic
ThreadM4
Stylus end materialRuby
