M2 stylus, ruby ball, stainless steel stem

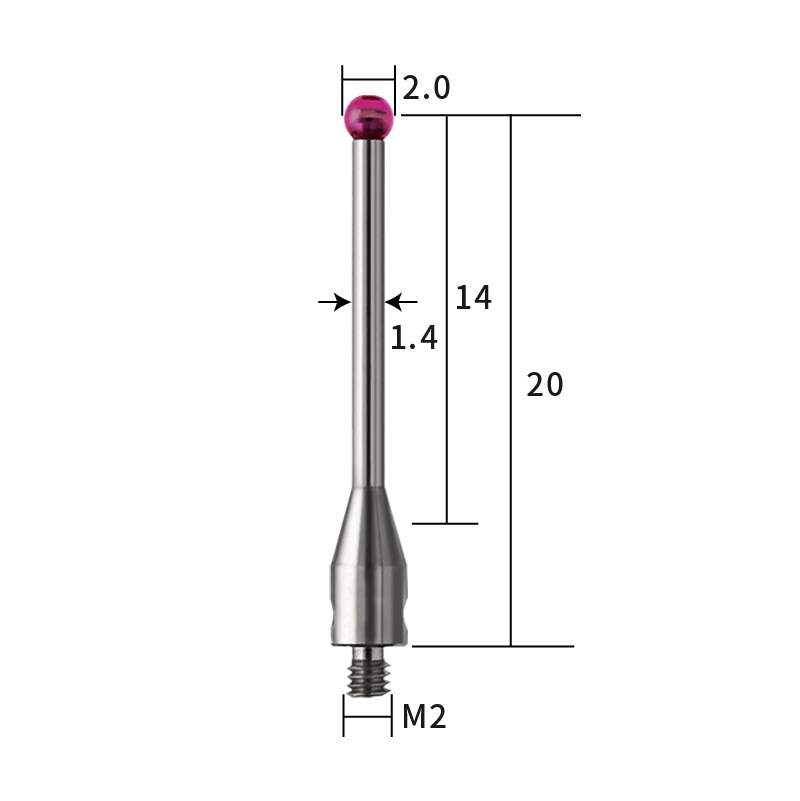

TH3603 M2 Ø 2 mm ruby ball, stainless steel rod, length 20 mm

The direct measuring needle is suitable for detecting simple features that can directly contact the measured surface without obstruction. Stainless steel measuring rods have excellent rigidity and are very suitable for applications with low weight requirements. Ruby is recognized as the industry standard material for measuring needles and is currently one of the hardest materials available, suitable for most applications. Due to the presence of adhesive wear, it is not recommended to use a ruby probe when scanning aluminum workpieces

Description

M2 Ø 2 mm ruby measuring ball, stainless steel measuring rod, length 20 mm


Measuring ball diameter (mm)2
Center measuring probeN
Effective working length (mm)14
Trochal discSS
Overal length (mm)20
Stem diameter (mm)1.4
Stem materialSS
ThreadM2
Stylus end materialRuby
